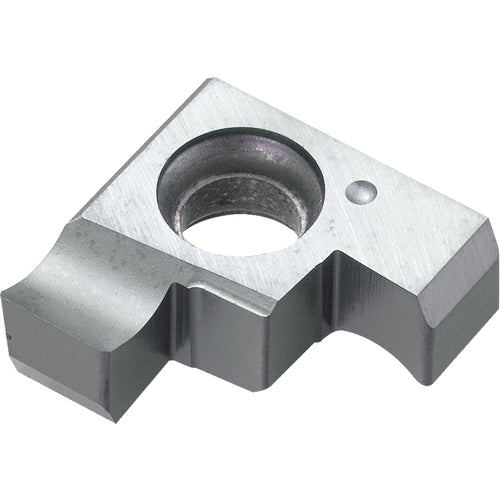

GE R150010B TN6020 Grade Uncoated Cermet, Indexable Grooving Insert
Item #: KY91TSQ16835
Brand: Kyocera Precision Tools
Model #: TSQ16835
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.5 mm |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.1 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2.2 mm |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | B |
| Insert Length (INSL) | 8.2 mm |
| Insert Style | GE |
| Fixing Hole Diameter (D1) | 2.7 mm |
| Number of Teeth | 2 |
| Insert Rake Angle (GAN) | 5 Degrees |
| Mounting Style | Clamp |
| Coating | TiCN |
| Series/List # | SIGE |
| Grade | TN6020 |
| Coating Process | Uncoated |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
| Application | Internal Grooving |
| Insert Width (W1) | 8.46 mm |
