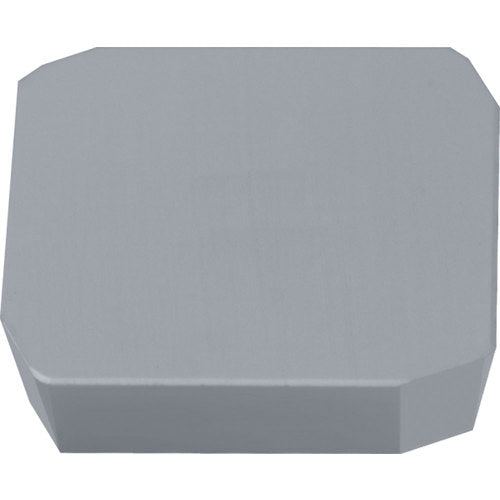

SPCN 42XPTR TN100M Grade Uncoated Cermet, Indexable Milling Insert
Item #: KY91TSP00723
Brand: Kyocera Precision Tools
Model #: TSP00723
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Insert Style | SPCN |
| Application | Chamfering | Facing | Shouldering |
| Insert Size | 42 |
| Corner Radius (RE) | 0.039″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | XPTR |
| Insert Thickness (S) | 1/8″ |
| Series/List # | GPM |
| Wiper Edge Length (BS) | 0.0787″ |
| Cutting Edge Material | Cermet |
| Insert Included Angle (EPSR) | 90 Degrees |
| Coating Process | Uncoated |
| Coating | TiCN/NbC |
| Number of Cutting Edges | 2 |
| Grade | TN100M |
| Measurement Type | Inch |
| Shape | Square |
