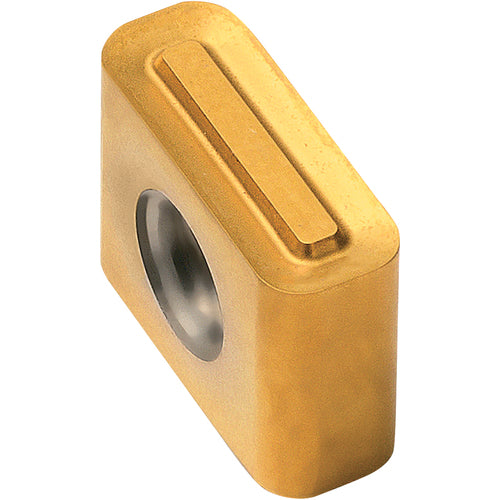

LNGX 120916 PV60M Grade PVD Cermet, Indexable Milling Insert
Item #: KY91TLR40002
Brand: Kyocera Precision Tools
Model #: TLR40002
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Shape | Rectangle |
| Application | Finish Milling |
| Insert Style | LNGX |
| Insert Length (INSL) | 12.7 mm |
| Insert Size | 120916 |
| Corner Radius (RE) | 1.59 mm |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Hole Diameter | 4.2 mm |
| Insert Thickness (S) | 6.35 mm |
| Cutting Edge Material | Cermet |
| Insert Included Angle (EPSR) | 90 Degrees |
| Coating Process | PVD |
| Coating | MEGACOAT NANO |
| Number of Cutting Edges | 2 |
| Grade | PV60M |
| Measurement Type | Metric |
