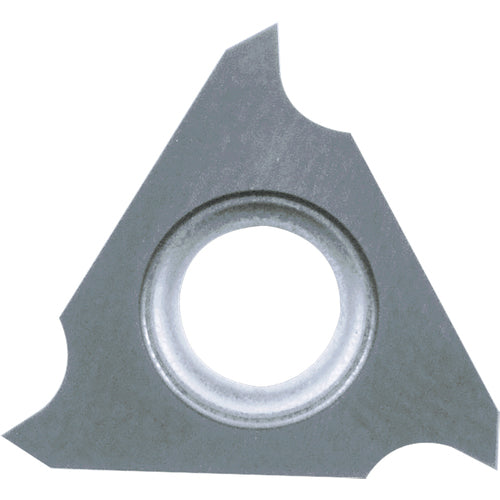

GBF 32R025005 GW15 Grade Uncoated Carbide, Indexable Grooving Insert
Item #: KY90TWG18701
Brand: Kyocera Precision Tools
Model #: TWG18701
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.25 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Corner Radius (RE) | 0.05 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.6 mm |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.18 mm |
| Insert Style | GBF |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Mounting Style | Screw |
| Coating | WC/Co |
| Series/List # | GBF |
| Grade | GW15 |
| Coating Process | Uncoated |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Application | External Grooving |
