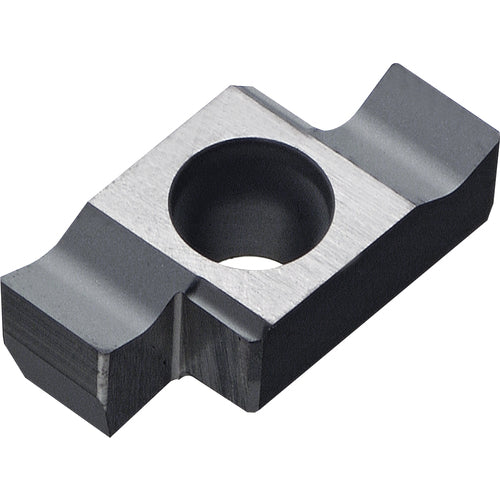

GE R450020E GW15 Grade Uncoated Carbide, Indexable Grooving Insert
Item #: KY90TWG17296
Brand: Kyocera Precision Tools
Model #: TWG17296
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 4.5 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6.5 mm |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.56 mm |
| Chip Breaker Type | E |
| Insert Length (INSL) | 21.66 mm |
| Insert Style | GE |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Number of Teeth | 2 |
| Insert Rake Angle (GAN) | 10 Degrees |
| Mounting Style | Clamp |
| Coating | WC/Co |
| Series/List # | SIGE |
| Grade | GW15 |
| Coating Process | Uncoated |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Application | Internal Grooving |
| Insert Width (W1) | 9.54 mm |
