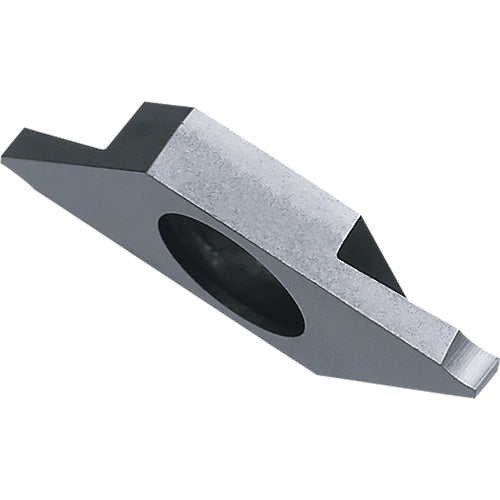

TKF 12L050S KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert
Item #: KY90TWE16001
Brand: Kyocera Precision Tools
Model #: TWE16001
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.5 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 0.03 mm |
| Chip Breaker Type | S |
| Insert Thickness (S) | 8.7 mm |
| Hole Diameter | 5 mm |
| Cutting Depth Maximum (CDX) | 2.5 mm |
| Insert Size | 12 |
| Cutting Edge Material | Carbide |
| Insert Style | TKF |
| Coating | WC/Co |
| Mounting Style | Screw |
| Grade | KW10 |
| Number of Cutting Edges | 2 |
| Cutting Direction (HAND) | Left Hand |
| Series/List # | KTKF |
| Application | Cut-Off | Small Parts Machining |
| Measurement Type | Metric |
