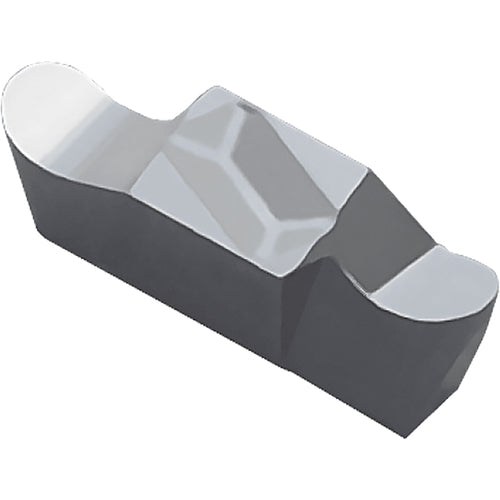

GV L100BR KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Item #: KY90TWE02061
Brand: Kyocera Precision Tools
Model #: TWE02061
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 1 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3.2 mm |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.5 mm |
| Chip Breaker Type | BR |
| Insert Length (INSL) | 15 mm |
| Insert Style | GV |
| Insert Rake Angle (GAN) | 9 Degrees |
| Number of Teeth | 2 |
| Coating | WC/Co |
| Mounting Style | Clamp |
| Grade | KW10 |
| Series/List # | GVIG |
| Cutting Edge Material | Carbide |
| Coating Process | Uncoated |
| Application | Internal Grooving | Small Parts Machining |
| Measurement Type | Metric |
