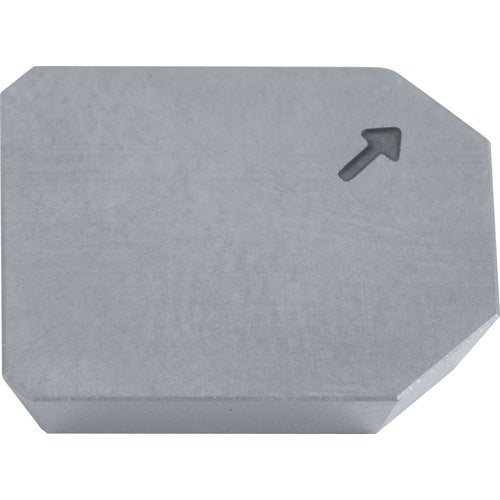

SEEN 42AFFRW KW10 Grade Uncoated Carbide, Indexable Milling Insert
Item #: KY90TWE00803
Brand: Kyocera Precision Tools
Model #: TWE00803
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Insert Style | SEEN |
| Application | Chamfering | Facing |
| Insert Size | 42 |
| Insert Length (INSL) | 0.5732″ |
| Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | AFFR-W |
| Insert Thickness (S) | 1/8″ |
| Series/List # | MSE |
| Wiper Edge Length (BS) | 0.1378″ |
| Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees |
| Coating Process | Uncoated |
| Coating | WC/Co |
| Number of Cutting Edges | 1 |
| Grade | KW10 |
| Measurement Type | Inch |
| Shape | Square |
