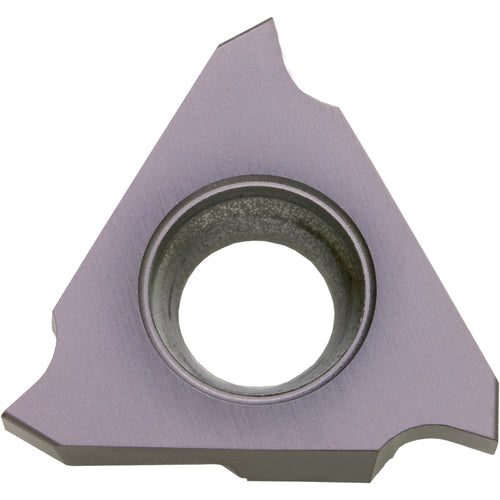

GBA 43R280030 PR1625 Grade PVD Carbide, Indexable Grooving Insert
Item #: KY90TLL17274
Brand: Kyocera Precision Tools
Model #: TLL17274
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2.8 mm |
| Application | External Grooving |
| Corner Radius (RE) | 0.3 mm |
| Applicable Material | Steel | Stainless Steel |
| Cutting Depth Maximum (CDX) | 5 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 4.76 mm |
| Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Insert Style | GBA |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive |
| Mounting Style | Screw | Clamp |
| Coating | MEGACOAT NANO |
| Series/List # | GBA |
| Grade | PR1625 |
| Coating Process | PVD |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
