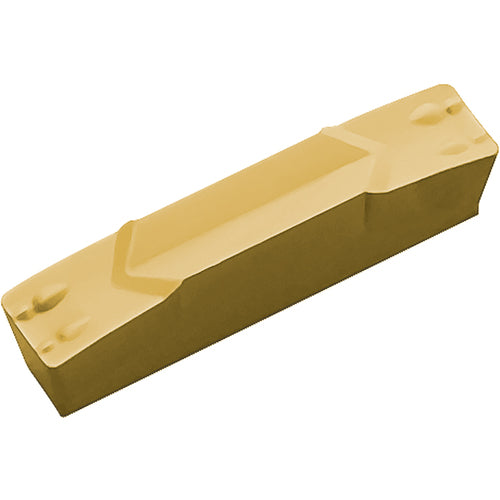

GMM 2420020MW CR9025 Grade CVD Carbide, Indexable Grooving Insert
Item #: KY90TKW12800
Brand: Kyocera Precision Tools
Model #: TKW12800
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2.4 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 17 mm |
| Chip Breaker Type | MW |
| Insert Thickness (S) | 4.3 mm |
| Insert Style | GMM |
| Insert Length (INSL) | 20 mm |
| Number of Teeth | 2 |
| Coating | TiCN/TiN |
| Mounting Style | Clamp |
| Grade | CR9025 |
| Series/List # | KGM |
| Cutting Edge Material | Carbide |
| Coating Process | CVD |
| Application | External Grooving | Traversing |
| Measurement Type | Metric |
| Applicable Material | Steel |
