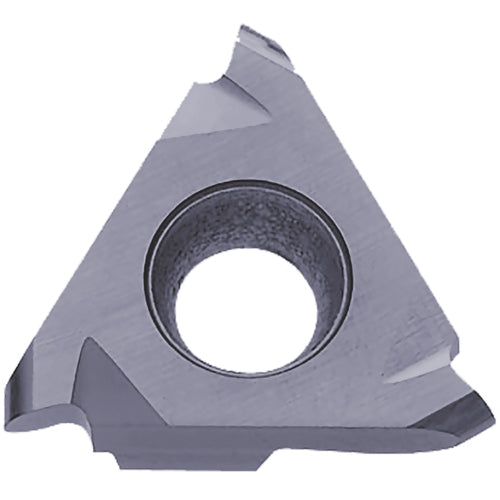

GBA 43L062R PR1215 Grade PVD Carbide, Indexable Grooving Insert
Item #: KY90TKH89030
Brand: Kyocera Precision Tools
Model #: TKH89030
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.1252″ |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.062″ |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.1575″ |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Insert Style | GBA |
| Fixing Hole Diameter (D1) | 0.2165″ |
| Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive |
| Mounting Style | Screw | Clamp |
| Coating | MEGACOAT |
| Series/List # | GBA |
| Grade | PR1215 |
| Coating Process | PVD |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | External Grooving |
