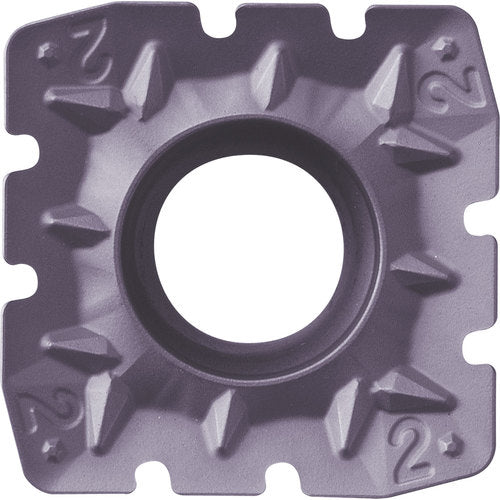

SPMT 1806EDERNB2 PR1225 Grade PVD Carbide, Indexable Milling Insert
Item #: KY90TKB05469
Brand: Kyocera Precision Tools
Model #: TKB05469
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Insert Style | SPMT |
| Application | Facing | Heavy Milling | Shouldering | Slotting |
| Insert Size | 1806 |
| Corner Radius (RE) | 3/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 0.7087″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.709″ |
| Chip Breaker Type | EDER-NB2 |
| Insert Thickness (S) | 1/4″ |
| Series/List # | MSRS |
| Wiper Edge Length (BS) | 0.1221″ |
| Hole Diameter | 0.2677″ |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Edge Material | Carbide |
| Coating | MEGACOAT |
| Coating Process | PVD |
| Grade | PR1225 |
| Number of Cutting Edges | 4 |
| Shape | Square |
| Measurement Type | Inch |
