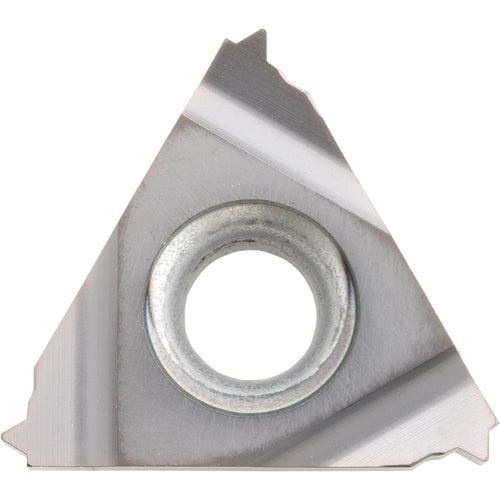

16 ER050ISO GW15 INSERT ALT MFG #16ER050ISOGW15
Item #: KY908827895
Brand: Kyocera Precision Tools
Model #: TWF18258
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Insert Style | 16 |
| Thread Pitch (TP) | 0.5 mm |
| Mounting Style | Clamp |
| Corner Radius (RE) | 0.06 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm |
| Angle | 60 Degrees |
| Grade | GW15 |
| Cutting Item Count (CICT) | 3 |
| Coating | WC/Co |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Hole Diameter | 4 mm |
| Cutting Position | External |
| Insert Seat Size Code (SSC) | 50 |
| Application | External Threading |
