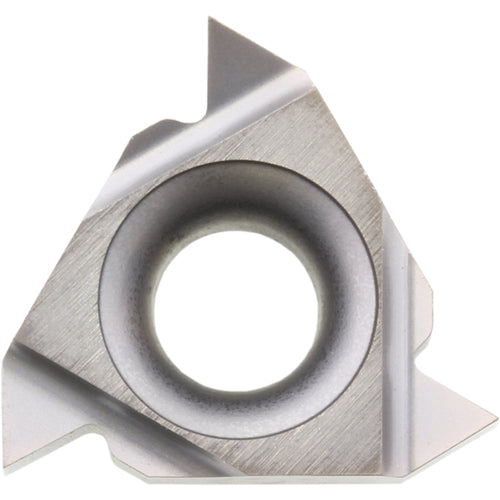

11 IRA60 GW15 INSERT ALT MFG #11IRA60GW15
Item #: KY908827890
Brand: Kyocera Precision Tools
Model #: TWF18234
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Thread Pitch (TP) | 0.5 mm – 1.5 mm |
| Insert Style | 11 |
| Threads per Inch (TPI) | 48-16 |
| Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.001″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Angle | 60 Degrees |
| Grade | GW15 |
| Cutting Item Count (CICT) | 3 |
| Coating | WC/Co |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.118″ |
| Cutting Position | Internal |
| Insert Seat Size Code (SSC) | A60 |
