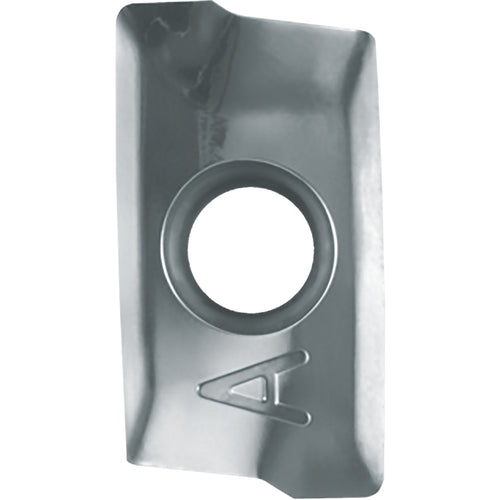

BDGT 11T302FRJA GW25 INST
Item #: KY908822195
Brand: Kyocera Precision Tools
Model #: TWF00270
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Insert Size | 11T302 |
| Application | Facing | Shouldering | Slotting | Helical Milling |
| Clearance Angle Major (AN) | 18 Degrees |
| Insert Length (INSL) | 0.4331″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0079″ |
| Chip Breaker Type | FR-JA |
| Insert Width (W1) | 0.2638″ |
| Series/List # | MEC-Series |
| Insert Thickness (S) | 0.1496″ |
| Hole Diameter | 0.1102″ |
| Insert Included Angle (EPSR) | 82 Degrees |
| Cutting Edge Material | Carbide |
| Coating | WC/Co |
| Tool Type | Finishing-Medium |
| Grade | GW25 |
| Coating Process | Uncoated |
| Shape | Parallelogram |
| Number of Cutting Edges | 2 |
| Insert Style | BDGT |
| Measurement Type | Inch |
