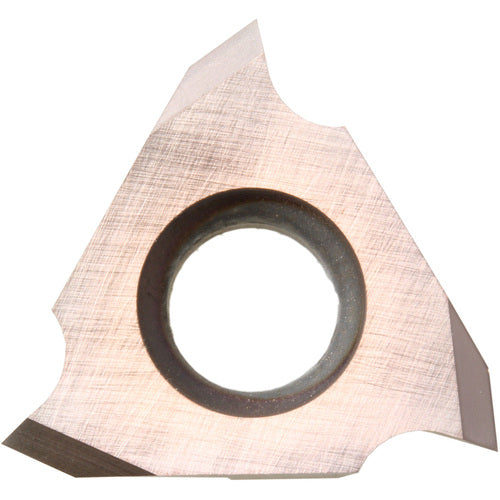

TTX 32R6001 PR930 INSERT
Item #: KY908807426
Brand: Kyocera Precision Tools
Model #: TKT05870
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Application | External Threading |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Applicable Material | Steel | Stainless Steel |
| Thread Pitch (TP) | 1 mm – 2 mm |
| Insert Style | TTX |
| Threads per Inch (TPI) | 28-14 |
| Mounting Style | Screw |
| Corner Radius (RE) | 0/1″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Angle | 60 Degrees |
| Grade | PR930 |
| Cutting Item Count (CICT) | 3 |
| Coating | TiCN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.173″ |
| Cutting Position | External |
| Insert Seat Size Code (SSC) | 32 |
