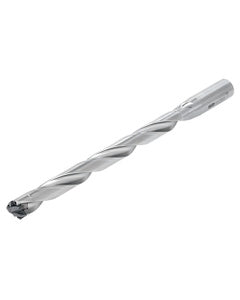

TID110R16-12
Item #: TG256785553
Brand: Tungaloy
Model #: 6785553
| Product Specifications | |
|---|---|
| Usable Length (LU) | 134 mm |
| Shank Length (LS) | 48 mm |
| Application | | General Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 11 |
| Master Insert Identification (MIID) | DMP110 |
| Cutting Diameter Minimum (DCN) | 11 mm |
| Point Length (PL) | 1.67 mm |
| Cutting Diameter Maximum (DCX) | 11.4 mm |
| Body Material | Steel |
| Overall Length (OAL) | 196.45 mm |
