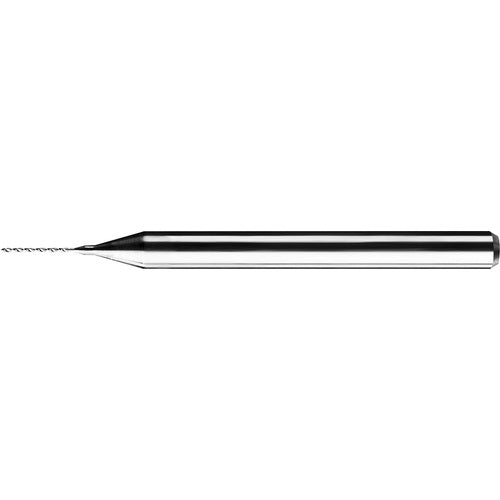

0.18 mm Dia. × 3 mm Shank × 2.5 mm Flute Length × 38 mm OAL, Standard, 118°, Uncoated, 2 Flute, Straight / Cylindrical Solid Carbide Drill
Item #: KY878506263
Brand: KYOCERA SGS Precision Tools
Model #: 07737
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.18 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0071″ |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.18 mm |
| Point Shape | 4 Facet |
| Length Group | Standard |
| Measurement Type | Metric |
| Coating | Uncoated |
| Series/List # | 226 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Length Chip Flute (LCF) | 2.5 mm |
| Application | Micro Drilling |
| Overall Length (OAL) | 38 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
