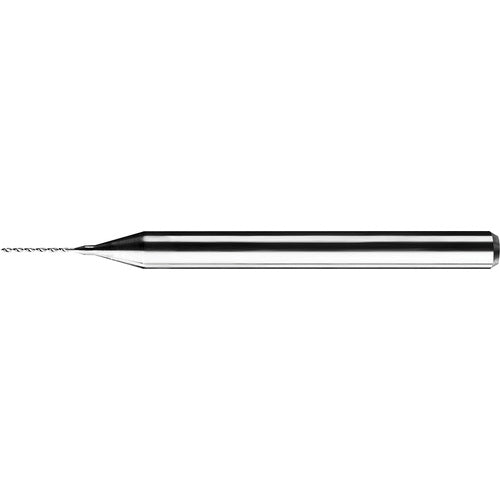

3/64″ Dia. × 1/8″ Shank × 0.4″ Flute Length × 1-1/2″ OAL, Standard, 130°, AlTiN, 2 Flute, Straight / Cylindrical Solid Carbide Drill
Item #: KY878500947
Brand: KYOCERA SGS Precision Tools
Model #: 07161
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/64″ |
| Flute Type | Spiral |
| Decimal Equivalent | 0.0469″ |
| Point Shape | 4 Facet |
| Length Group | Standard |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | 105 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Length Chip Flute (LCF) | 0.4″ |
| Application | Micro Drilling |
| Overall Length (OAL) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 130 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
