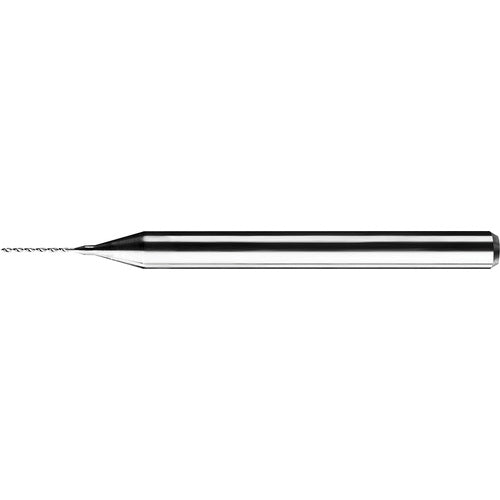

#95 Dia. × 1/8″ Shank × 0.08″ Flute Length × 1-1/2″ OAL, Standard, 118°, Uncoated, 2 Flute, Straight / Cylindrical Solid Carbide Drill
Item #: KY878500571
Brand: KYOCERA SGS Precision Tools
Model #: 07240
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #95 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0067″ |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #95 |
| Point Shape | 4 Facet |
| Length Group | Standard |
| Measurement Type | Wire Gauge |
| Coating | Uncoated |
| Series/List # | 105 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Length Chip Flute (LCF) | 0.08″ |
| Application | Micro Drilling |
| Overall Length (OAL) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
