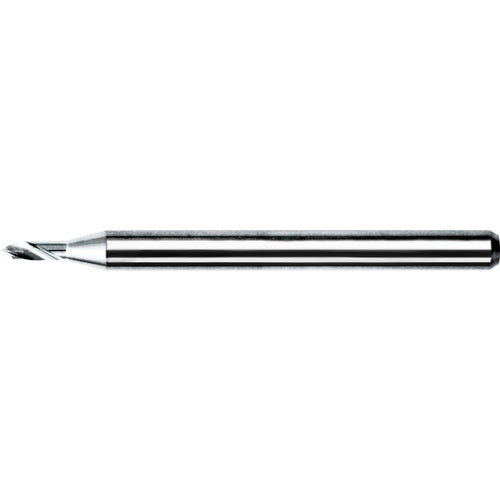

1/32″ × 1-1/2″ OAL 130 Degree Carbide Spiral / Helical Spotting Drill AlTiN
Item #: KY878500071
Brand: KYOCERA SGS Precision Tools
Model #: 07012
| Product Specifications | |
|---|---|
| Style | Spiral / Helical |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) | 1/32″ |
| Application | Micro Spot Drilling |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/32″ |
| Applicable Material | Steel ~30HRC | Steel 30~40HRC | Hardened Steel ~55HRC | Hardened Steel ~68HRC | Stainless Steel | Cast Iron | Graphite | Copper Alloy | Brass | CFRP | Plastic | Thermoset Plastic | High Density Plastic | Nickel / Cobalt | Titanium Alloy |
| Decimal Equivalent | 0.0312″ |
| Flute Length | 0.09″ |
| Point Angle (SIG) | 130 Degrees |
| Measurement Type | Fractional |
| Flute Count (NOF) | 2 |
| Length Group | Standard |
| Overall Length (OAL) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Tool Type | Spotting Drill |
| Shank Type | Straight / Cylindrical |
| Cutting Length | 0.09″ |
| Coating | AlTiN |
| Series/List # | 80 |
