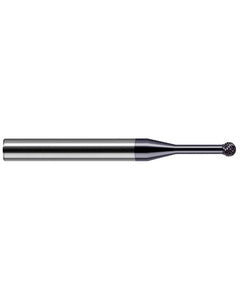

3/8″ Dia. × 0.32″ LOC × 3/8″ Shank Size × 2-1/2″ OAL, Flute, Carbide, TiAlN, Ballnose Endmill
Item #: GE90980624C3
Brand: Harvey Tool
Model #: 980624-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Usable Length (LU) | 0.695″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Corner Radius (RE) | 0.1875″ |
| Depth of Cut Maximum (APMX) | 0.32″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Single / Double End | Single End |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 270 Degrees |
