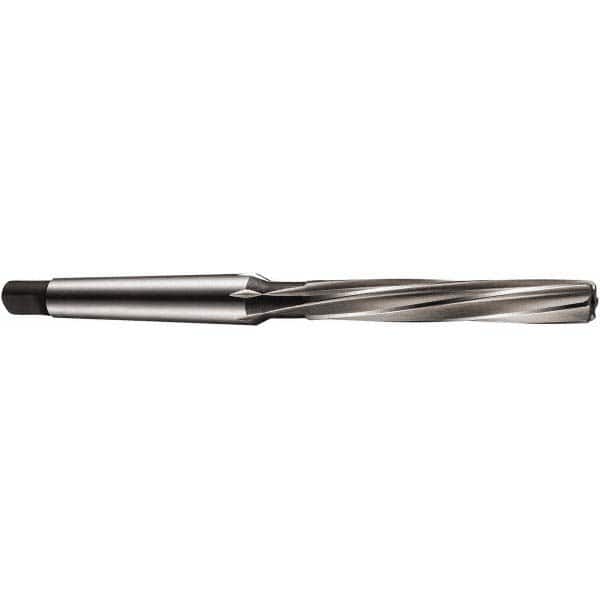

DORMER - 32mm High Speed Steel 10 Flute Chucking Reamer
Item #: 80987134
Brand: DORMER
Model #: 0181997
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 32.00 |
| Reamer Diameter (Decimal Inch) | 1.2608 |
| Reamer Material | High Speed Steel |
| Shank Type | Morse Taper |
| Flute Type | Spiral |
| Overall Length (mm) | 293.00 |
| Overall Length (Decimal Inch) | 11.5442 |
| Flute Length (mm) | 133.00 |
| Flute Length (Decimal Inch) | 5.2402 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 10 |
| Shank Taper Designation | 4MT |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright/Oxide |
| Reamer Diameter Tolerance (mm) | +0.025 to 0.000 |
