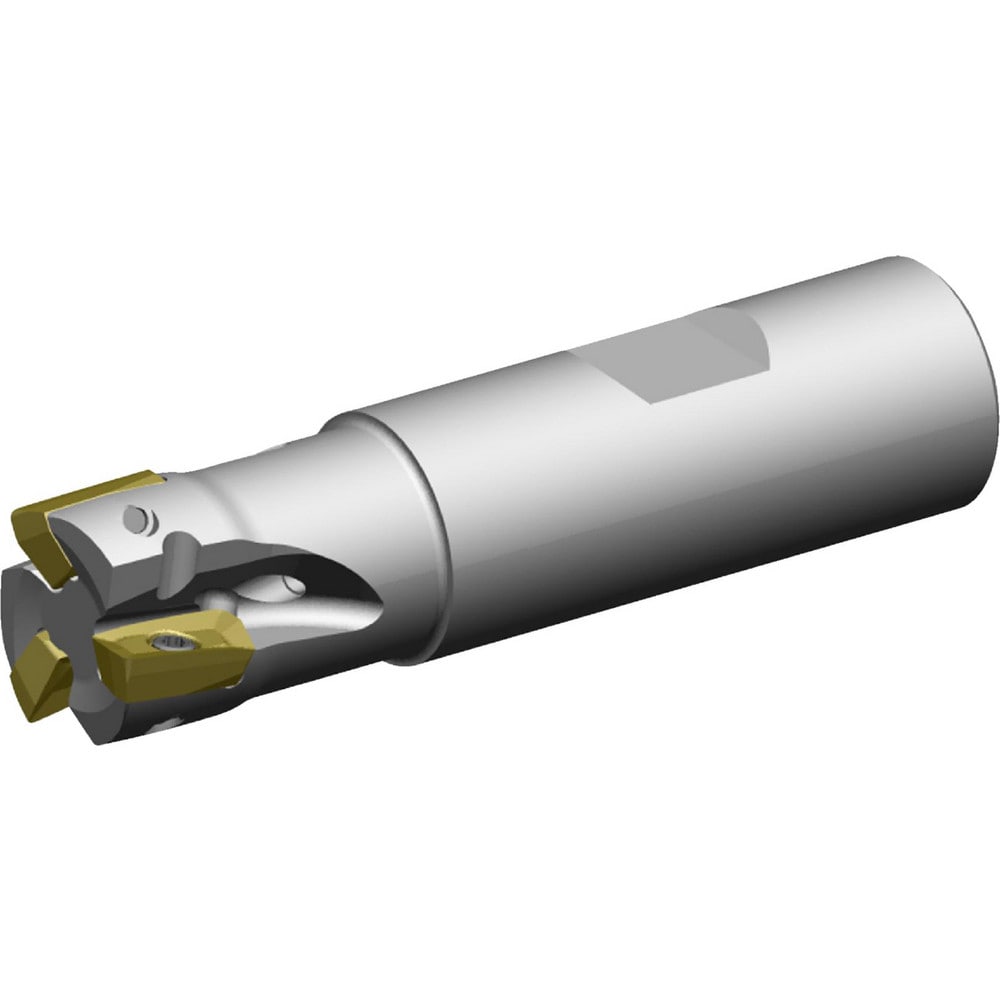

Brand: Widia / Part #: 5416483
Item #: 98775331
Brand: Widia
Model #: 5416483
Product Specifications
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 39.00 |
| Cutter Style | VSM |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.0000 |
| Maximum Ramping Angle | 3.6 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (mm) | 100.0000 |
| Tool Material | Steel |
| Series | VSM11 |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (mm) | 61.000 |
| Head Length (mm) | 39.00 |
| Maximum RPM | 25800.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Coolant Hole Diameter (mm) | 6.00 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T11.. |
| Insert Compatibility | XD.T11.. |
| Hand of Holder | Right Hand |
| Rake Angle | -6.57 ? (Radial);9.60 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | VSM11D032Z05B32XD11 |
| Manufacturers Catalog Number | VSM11D032Z05B32XD11 |
| Usable Length (mm) | 39.000 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
