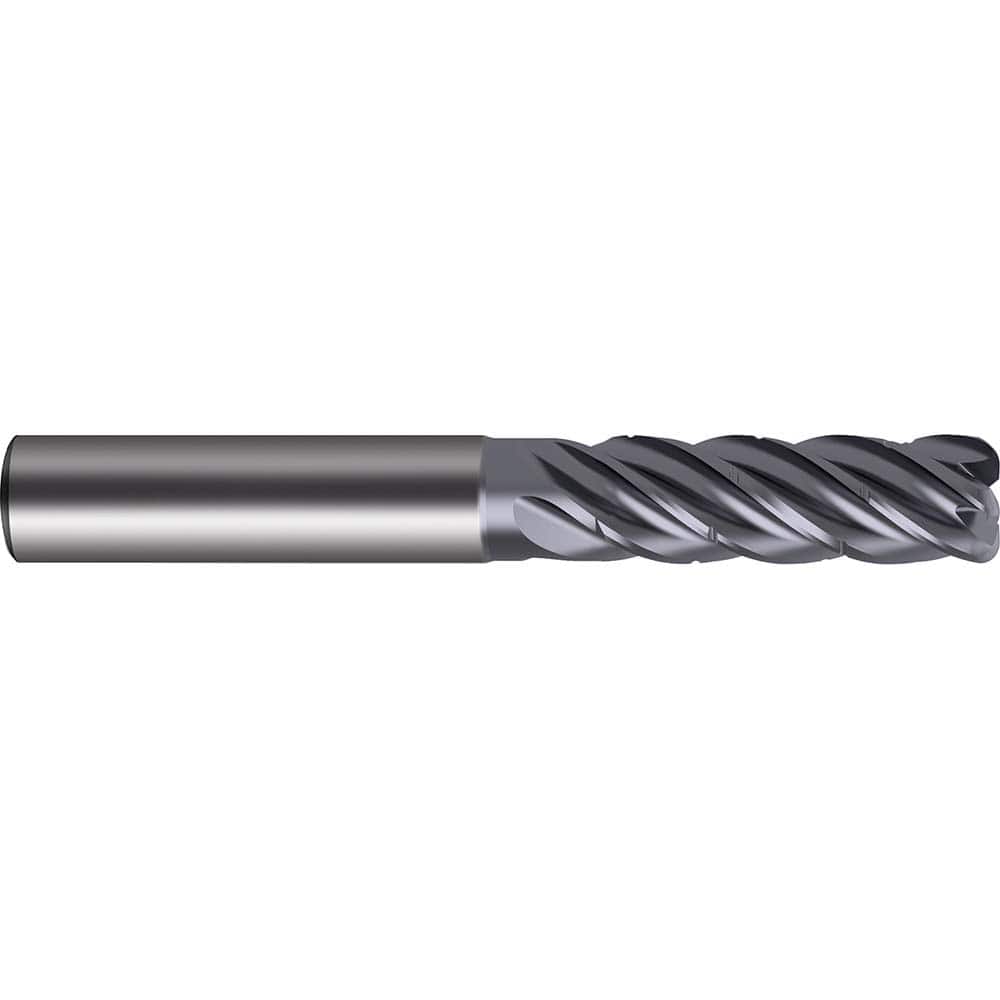

Guhring - 8mm Diam 5 Flute Carbide 1.5mm Corner Radius End Mill
Item #: 19213354
Brand: Guhring
Model #: 9068600080150
Features and Benefits
Super-A is a multi-layer coating featuring AlTiN. It is used on hardened steels, titanium and nickel-chromium based alloys. Super-A is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Corner Radius (mm) | 1.5000 |
| Number of Flutes | 5 |
| Material | Carbide |
| Finish/Coating | Super-A |
| Length of Cut (mm) | 26.0000 |
| Shank Diameter (mm) | 8.0000 |
| Overall Length (mm) | 75.0000 |
| Flute Type | Helical |
| Cutting Direction | Right |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Reach Length (mm) | 38.00 |
| Neck Diameter (mm) | 7.700 |
| Chamfer Angle | 45.000 |
| Centercutting | No |
| Extended Reach | Yes |
| Shank Type | Cylindrical |
| Series/List | 6860 |
| Chipbreaker | Yes |
