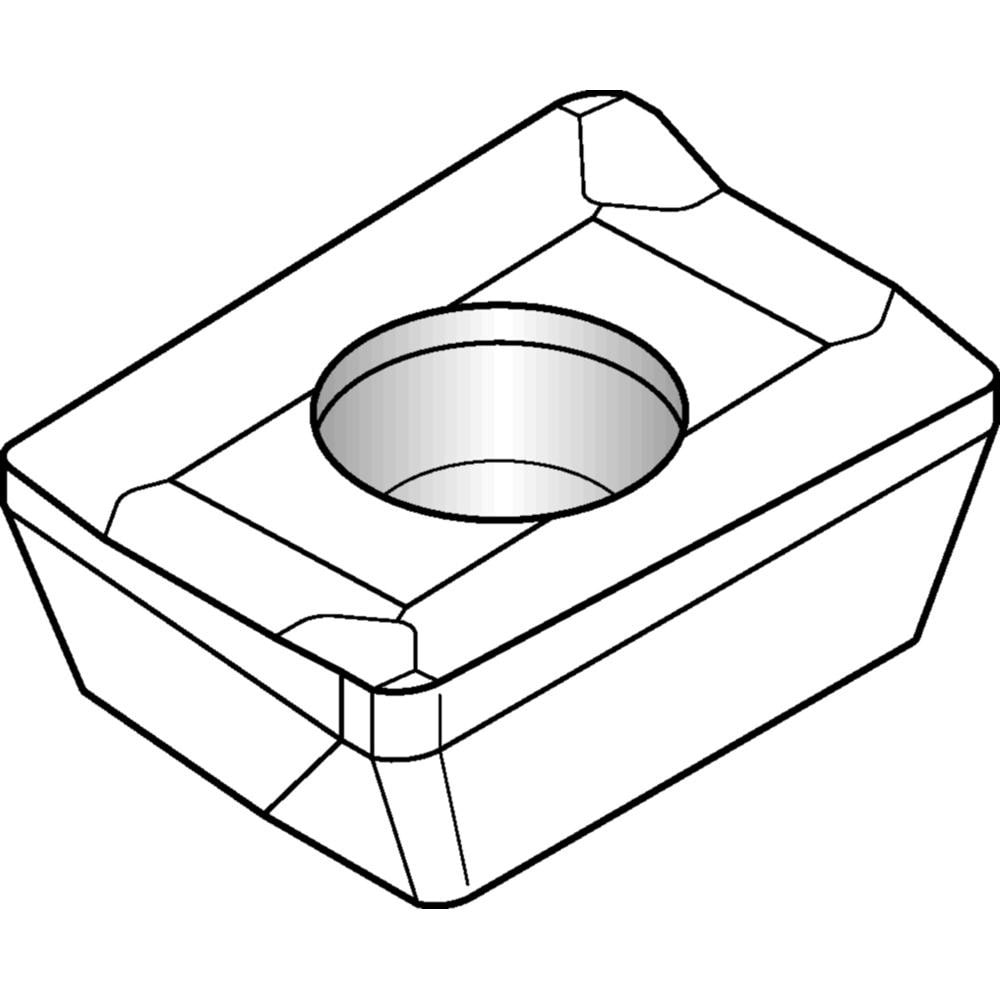

Brand: Widia / Part #: 3577973
Item #: 94484532
Brand: Widia
Model #: 3577973
Product Specifications
| Insert Style | BDMT |
| Insert Size Code | 0703 |
| Insert Size | 07 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6405 |
| Inscribed Circle (Decimal Inch) | 0.1791 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | M6800 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Secondary Workpiece Material | Hard Material; Cast Iron; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; H; K |
| Ansi Code | BDMT070304ERML |
| Iso Code | BDMT070304ERML |
| Manufacturers Catalog Number | BDMT070304ERML |
| Cutter Series Compatibility | M6800S BD0703 IN |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Length of Cut (mm) | 7.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.1791 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1024 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2866 |
