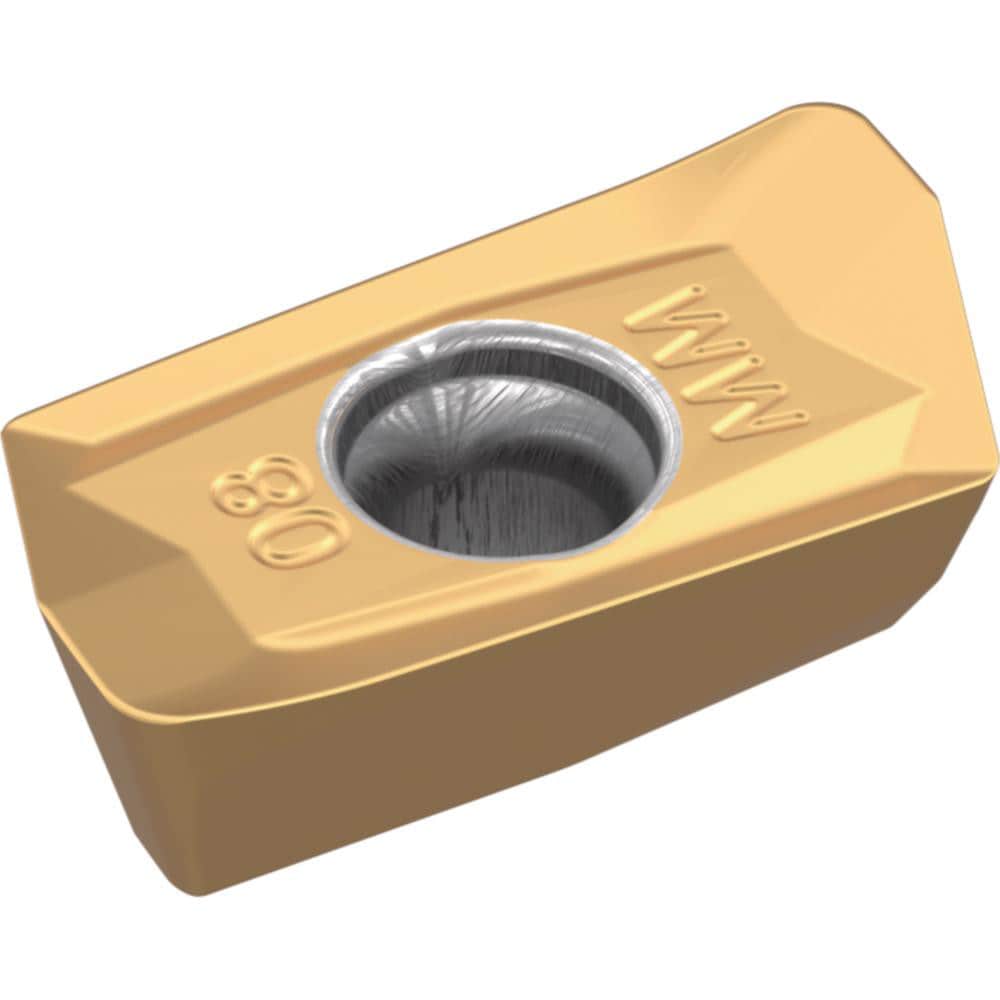

Brand: Widia / Part #: 5980398
Item #: 94469889
Brand: Widia
Model #: 5980398
Product Specifications
| Insert Style | XDPT |
| Insert Size Code | 1104 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | WP40PM |
| Length (Inch) | 17/32 |
| Inscribed Circle (Decimal Inch) | 0.2733 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM11 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.4628 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XDPT1105SRMM |
| Iso Code | XDPT110420PDSRMM |
| Manufacturers Catalog Number | XDPT1105SRMM |
| Cutter Series Compatibility | VSM11 XDPT |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.2733 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1628 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5319 |
