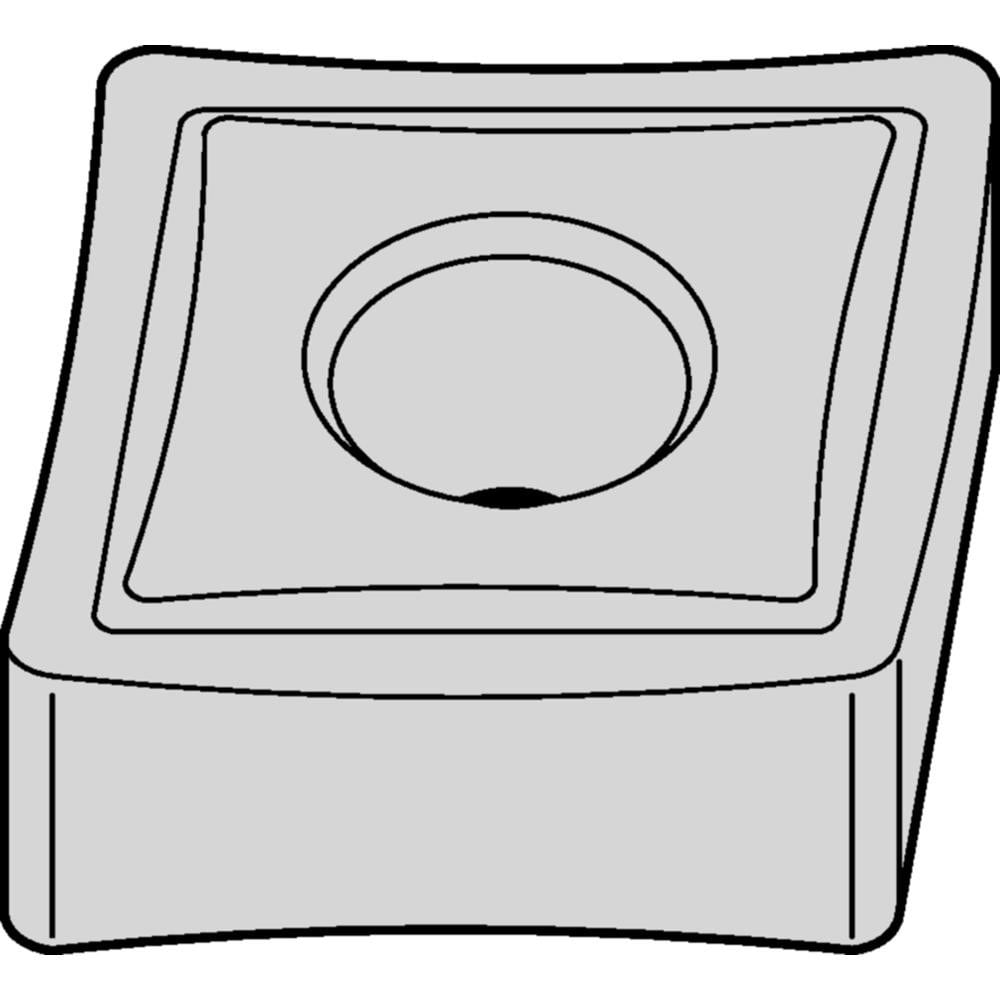

Brand: Widia / Part #: 5549206

Brand: Widia / Part #: 5549206


Item #: 95255063
Brand: Widia
Model #: 5549206

Product Specifications

Insert Style CNGP
Insert Shape Code C
Insert Size Code 4305
Insert Shape Diamond
Coating/Finish Uncoated
Manufacturer Grade WU10HT
Corner Radius (Decimal Inch) 0.0079
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code G
Included Angle 80.00
Relief Angle 0.000
Series CNGP
Coating Process Uncoated
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 4
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code CNGP4305
Iso Code CNGP120402
Manufacturers Catalog Number CNGP4305
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker None
Style CNGP
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$14.16
