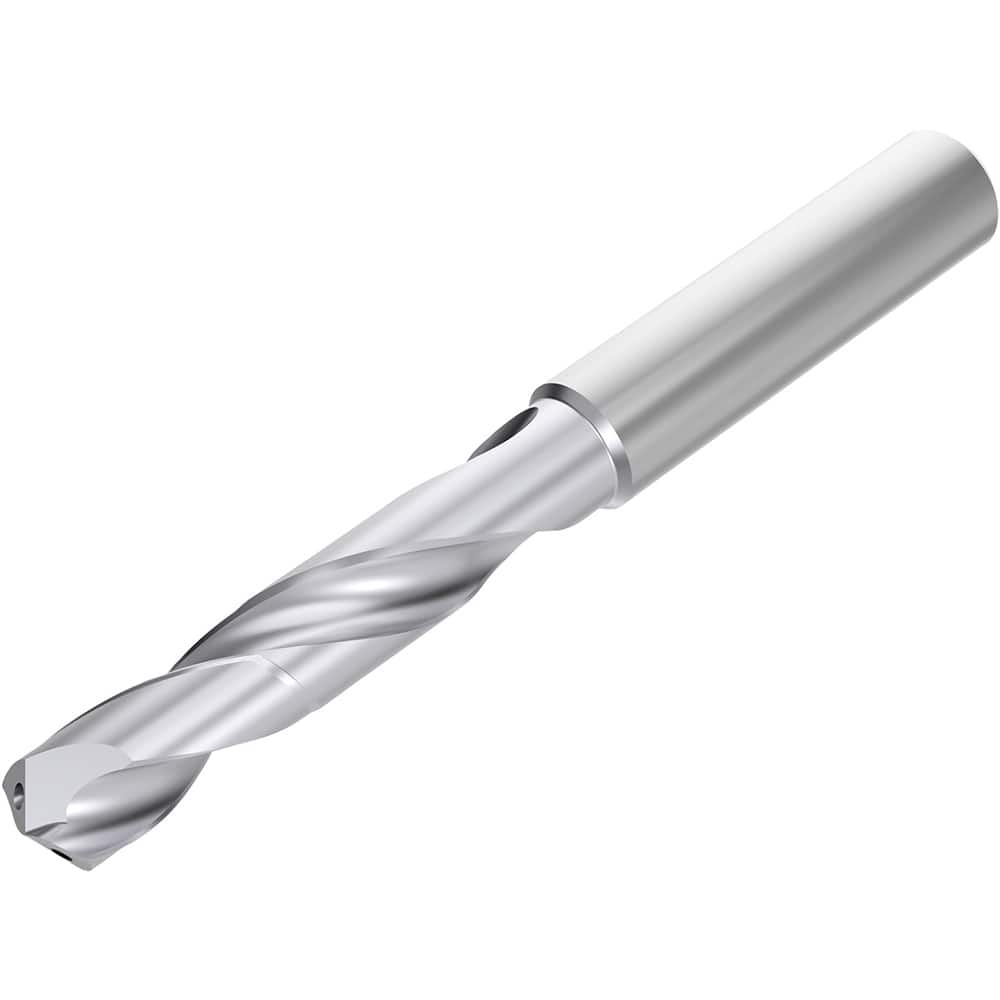

Seco - Screw Machine Length Drill Bits Drill Bit Size (Decimal Inch): 0.2950 Drill Bit Size (mm): 7.50
Item #: 14419873
Brand: Seco
Model #: 10004135
Features and Benefits
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.2950 ; Drill Bit Size (mm): 7.50 ; Drill Point Angle: 140 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: TiAlN +NbN ; Flute Type: Spiral
| Drill Bit Size (Decimal Inch) | 0.2950 |
| Drill Bit Size (mm) | 7.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | TiAlN +NbN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 41.00 |
| Overall Length (mm) | 79.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 8.0000 |
| Flute Type | Spiral |
| Maximum Drilling Depth (mm) | 25.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.000 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Series/List | SD203 |
