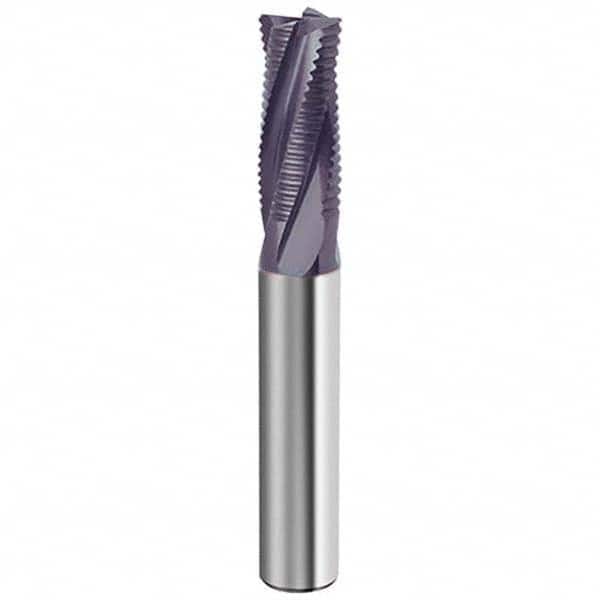

Guhring - Roughing & Finishing End Mills Mill Diameter (Inch): 1/4 End Type: Corner Chamfer
Item #: 11405750
Brand: Guhring
Model #: 9199600063500
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 1/4 ; End Type: Corner Chamfer ; Chamfer Length (Decimal Inch): 0.0050 ; Number of Flutes: 3 ; Material: Solid Carbide ; Finish/Coating: FIREX
| Mill Diameter (Inch) | 1/4 |
| End Type | Corner Chamfer |
| Chamfer Length (Decimal Inch) | 0.0050 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | No |
| Shank Type | Cylindrical |
| Helix Angle | 20 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Series/List | 19960 |
