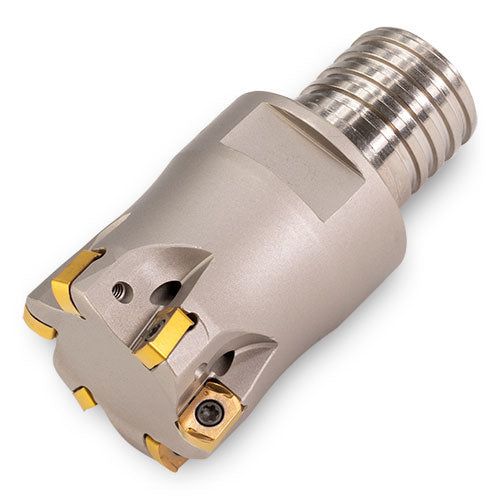

1TG1B-07010TSR01
Item #: IC522924799
Brand: Ingersoll
Model #: 2924799
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/4″ |
| Functional Length (LF) | 1″ |
| Cutting Diameter (DC) | 0.575″ |
| Corner Radius (RE) | 0.035″ |
| Cutting Diameter Maximum (DCX) | 3/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.02″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.25 Degrees |
| Hub Diameter (DHUB) | 0.725″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | |
