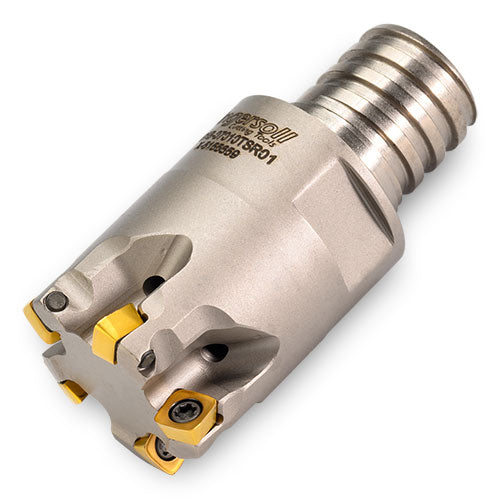

15G1B-03020T6R01
Item #: IC522924703
Brand: Ingersoll
Model #: 2924703
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/8″ |
| Functional Length (LF) | 0.669″ |
| Cutting Diameter (DC) | 0.167″ |
| Corner Radius (RE) | 0.043″ |
| Cutting Diameter Maximum (DCX) | 3/8″ |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 2 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.024″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.8 Degrees |
| Hub Diameter (DHUB) | 0.369″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
