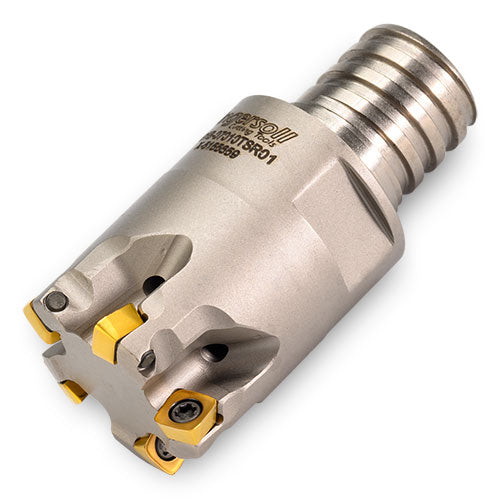

15G1B-05010T8R01
Item #: IC522924702
Brand: Ingersoll
Model #: 2924702
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1/2″ |
| Functional Length (LF) | 0.748″ |
| Cutting Diameter (DC) | 0.291″ |
| Corner Radius (RE) | 0.042″ |
| Cutting Diameter Maximum (DCX) | 1/2″ |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.023″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 4.7 Degrees |
| Hub Diameter (DHUB) | 0.485″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
