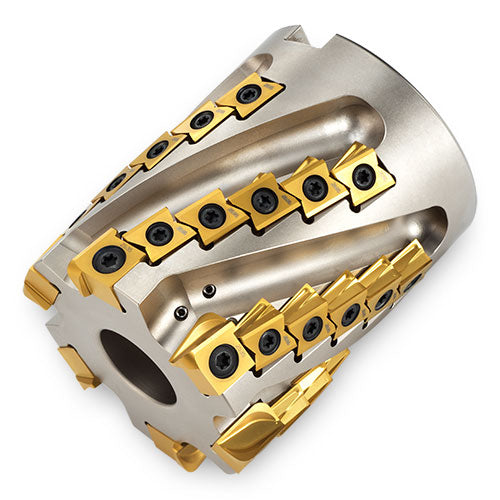

2XJ3J-25030D3R01
Item #: IC522923695
Brand: Ingersoll
Model #: 2923695
| Product Specifications | |
|---|---|
| Application | | Facing | Shouldering | Slotting | |
| Flute Count (NOF) | 5 |
| Cutting Diameter (DC) | 2-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 2.431″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Face Effective Cutting Edge Count (ZEFF) | 5 Teeth |
| Body Diameter (BD) | 2.415″ |
| Overall Length (OAL) | 3″ |
