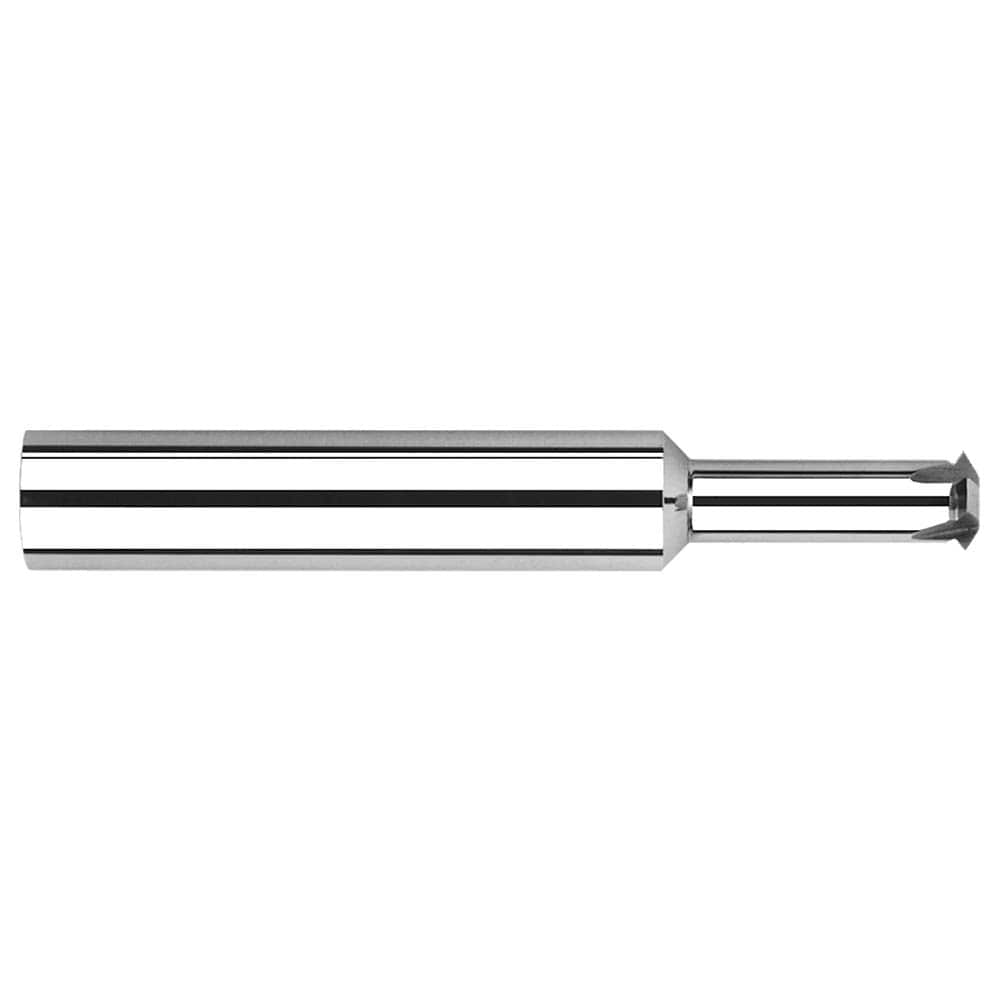

Brand: Harvey Tool / Part #: 54275
Item #: 82498353
Brand: Harvey Tool
Model #: 54275
Product Specifications
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0909 |
| Minimum Threads Per Inch | 11 |
| Maximum Pitch (Decimal Inch) | 0.0313 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | 5/8 in-11 - 5/8 in-32 |
| Thread Depth (Decimal Inch) | 1.7500 |
| Shank Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.4500 |
| Minimum Nominal Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Shank Length (Decimal Inch) | 2.2500 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 6 |
| Coating/Finish | Uncoated |
