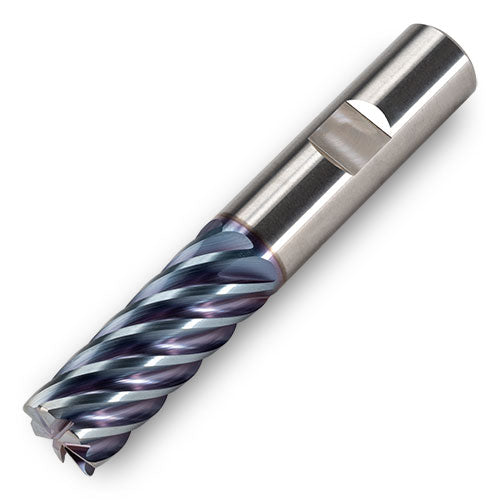

RE1-.6252.502.50Z7015W5
Item #: IC079592289
Brand: Ingersoll
Model #: 9592289
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Application | Helical Interpolation | Rampdown | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 2-1/2″ |
| Body Material | Steel |
| Overall Length (OAL) | 5″ |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 7 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| End Shape | Square |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 2-1/2″ |
