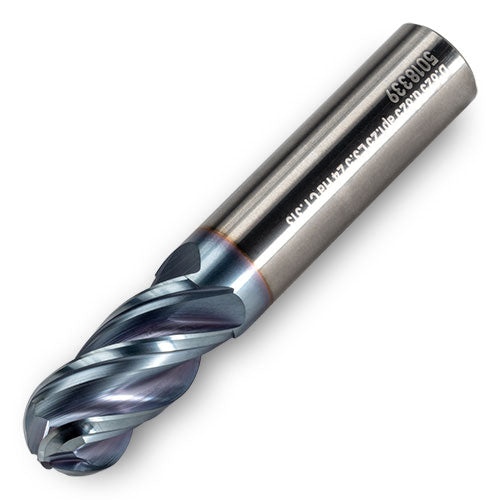

RHB-.312.500.500Z4156C2
Item #: IC079589367
Brand: Ingersoll
Model #: 9589367
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.312″ |
| Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Corner Radius (RE) | 0.156″ |
| Overall Length (OAL) | 2″ |
| Body Material | Steel |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.312″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Inch |
