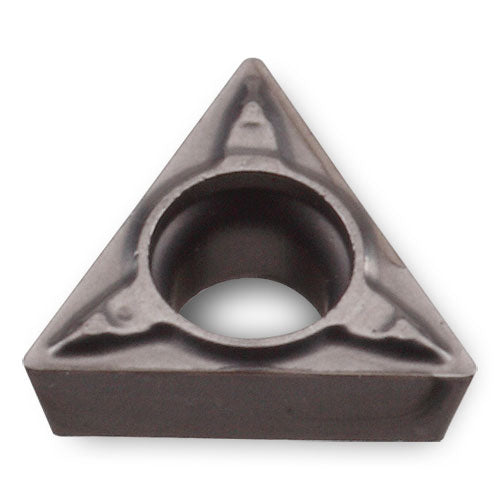

TPMT32.52FA TT8020
Item #: IC066141766
Brand: Ingersoll
Model #: 6141766
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.012″ |
| Insert Size | 32.52 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.571″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Thickness (S) | 0.156″ |
| Max. Turning Feed (ft(max)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | TT8020 |
