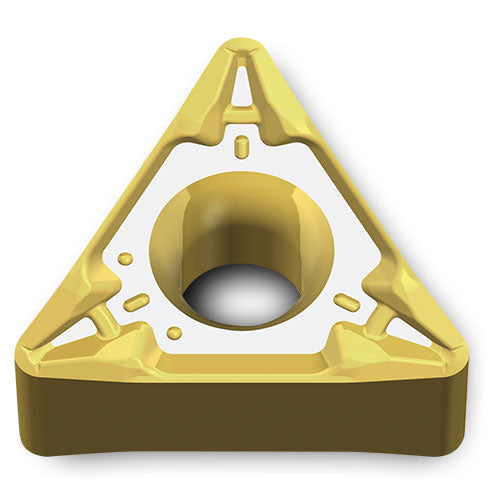

TNMG2.531FS TT8125
Item #: IC066140278
Brand: Ingersoll
Model #: 6140278
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Grade | TT8125 |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.012″ |
| Insert Size | 2.531 |
| Depth of Cut Maximum (APMX) | 0.04″ |
| Cutting Edge Length (L) | 0.487″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.012″ |
| Inscribed Circle Diameter (IC) | 0.313″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
