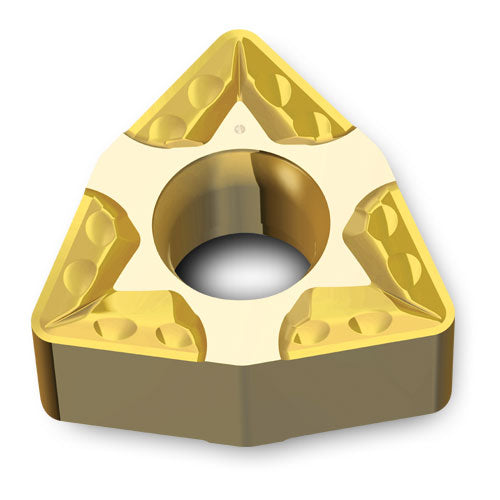

WNMX331MT TT9225
Item #: IC066129151
Brand: Ingersoll
Model #: 6129151
| Product Specifications | |
|---|---|
| Insert Style | WNMX |
| Min D.O.C. | 0.031″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 1/8″ |
| Insert Size | 331 |
| Min. Turning Feed (ft(min)) | 0.004″ |
| Cutting Edge Length (L) | 0.244″ |
| Max. Turning Feed (ft(max)) | 0.014″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Series/List # | WNMX 331-MT |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | TT9225 |
