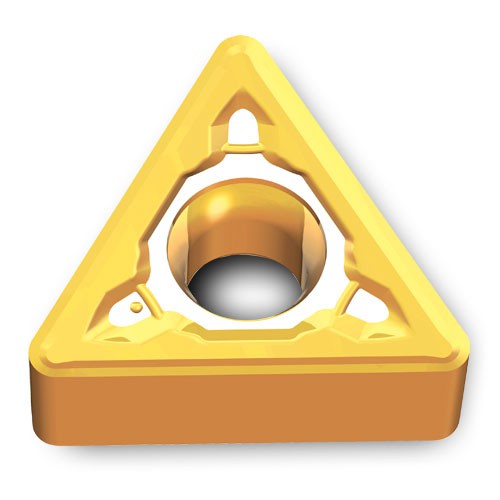

TNMG2.532EM TT5080
Item #: IC066118359
Brand: Ingersoll
Model #: 6118359
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 2.532 |
| Min. Turning Feed (ft(min)) | 0.005″ |
| Cutting Edge Length (L) | 0.433″ |
| Max. Turning Feed (ft(max)) | 0.016″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.313″ |
| Series/List # | CNMG 2.532-EM |
| Coating | TiAlN+AlTiN+TiAlN+TiN |
| Body Material | Carbide |
| Grade | TT5080 |
