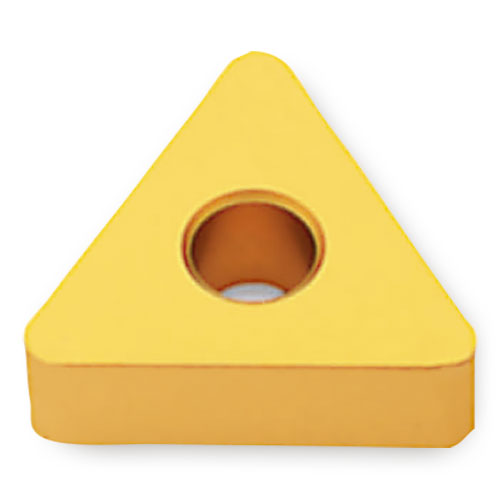

TNMA331 CT3000
Item #: IC065780253
Brand: Ingersoll
Model #: 5780253
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 331 |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Cutting Edge Length (L) | 0.61″ |
| Max. Turning Feed (ft(max)) | 0.02″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Body Material | Carbide |
| Grade | CT3000 |
