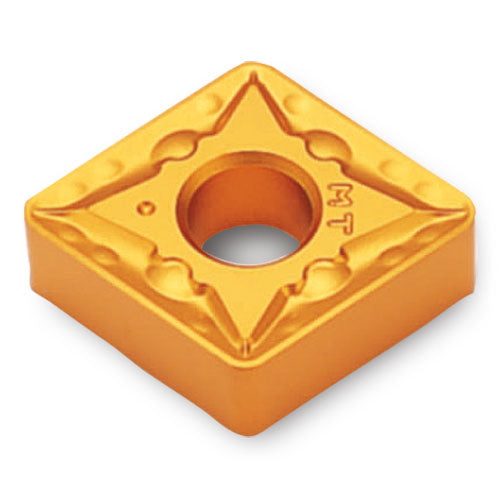

CNMG433MT TT7100 - Benchmark Tooling

CNMG433MT TT7100


Item #: IC065517269
Brand: Ingersoll
Model #: 5517269

Product Specifications
Insert Style CNMG
Min D.O.C. 0.059″
Corner Radius (RE) 0.047″
Depth of Cut Maximum (APMX) 0.197″
Insert Size 433
Min. Turning Feed (ft(min)) 0.008″
Cutting Edge Length (L) 0.508″
Max. Turning Feed (ft(max)) 0.022″
Insert Thickness (S) 0.187″
Cutting Direction (HAND) Neutral
Inscribed Circle Diameter (IC) 1/2″
Measurement Type Inch
Insert Included Angle (EPSR) 80 Degrees
Series/List # DNMG 433-MT
Coating TiCN+Al2O3+TiN
Body Material Carbide
Grade TT7100
$16.20
