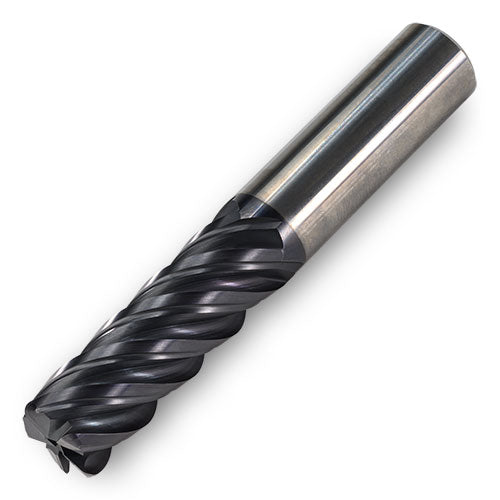

47DE1040S1RC12S5 IN2006
Item #: IC049586499
Brand: Ingersoll
Model #: 9586499
Product Specifications | |
---|---|
Cutting Diameter (DC) | 1″ |
Application | Helical Interpolation | Rampdown | Shouldering |
Connection Diameter Machine Side (DCONMS) | 1″ |
Ramping Angle Maximum (RMPX) | 3 Degrees |
Depth of Cut Maximum (APMX) | 4″ |
Body Material | Steel |
Overall Length (OAL) | 7″ |
Decimal Equivalent | 1″ |
Flute Count (NOF) | 5 |
Measurement Type | Inch |
Flute Helix Angle (FHA) | 43 Degrees |
Tool Cutting Edge Angle (KAPR) | 90 Degrees |
End Shape | Square |
