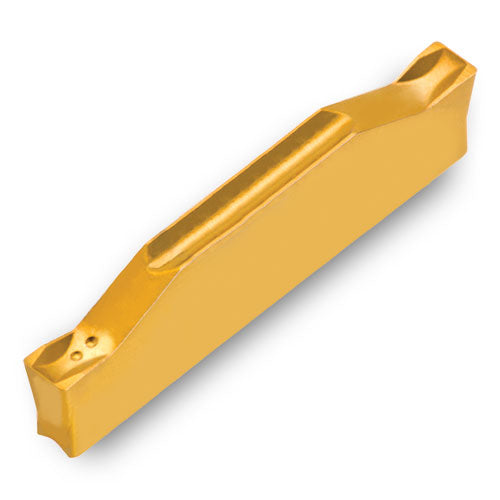

TDV3 TT8020
Item #: IC046312188
Brand: Ingersoll
Model #: 6312188
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Max. Grooving Feed (fg(max)) | 0.007″ |
| Corner Radius (RE) | 0.008″ |
| Min. Grooving Feed (fg(min)) | 0.0024″ |
| Insert Thickness (S) | 0.095″ |
| Number of Cutting Edges | 2 |
| Insert Length (INSL) | 0.787″ |
| Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.748″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | TT8020 |
| Insert Seat Size Code (SSC) | 3 |
| Application | | Ext. Grooving | Parting | |
