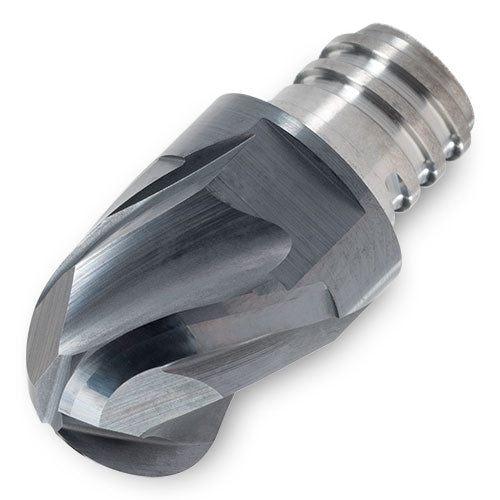

46B08005TQRB10 IN2005
Item #: IC045884166
Brand: Ingersoll
Model #: 5884166
| Product Specifications | |
|---|---|
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Functional Length (LF) | 0.591″ |
| Cutting Diameter (DC) | 0.315″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IN2005 |
| Flute Count (NOF) | 3 |
| Coating | TiAlN |
| Corner Radius (RE) | 0.158″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.299″ |
| Body Material | Steel |
