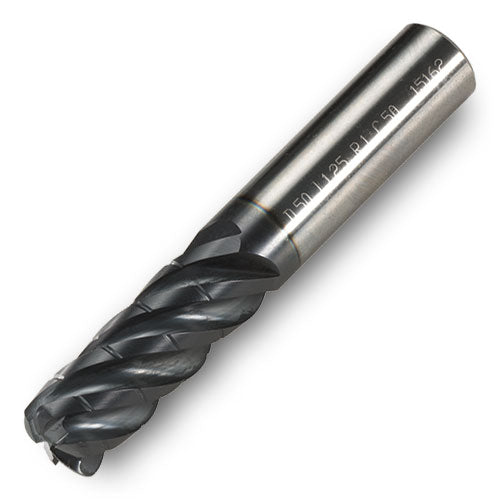

47D01024T1RP17 IN2006
Item #: IC045682659
Brand: Ingersoll
Model #: 5682659
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.394″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Application | | Corner Rounding | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 0.945″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 2.835″ |
| Grade | IN2006 |
| Coating | TiAlN |
| Neck Diameter (DN) | 0.394″ |
| Flute Count (NOF) | 5 |
| Body Material | Steel |
| Flute Helix Angle (FHA) | 38 Degrees |
| Decimal Equivalent | 0.394″ |
| End Shape | Square |
| Measurement Type | Inch |
| Usable Length (LU) | 0.945″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
