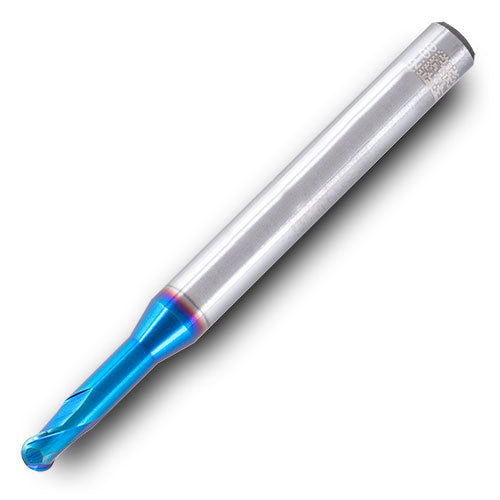

45B00202U0RB012 IN2203
Item #: IC045669023
Brand: Ingersoll
Model #: 5669023
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.008″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.157″ |
| Corner Radius (RE) | 0.004″ |
| Depth of Cut Maximum (APMX) | 0.008″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 1.772″ |
| Grade | IN2203 |
| Coating | AlTiCrSiN |
| Body Material | Steel |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.008″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
| Usable Length (LU) | 0.059″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
