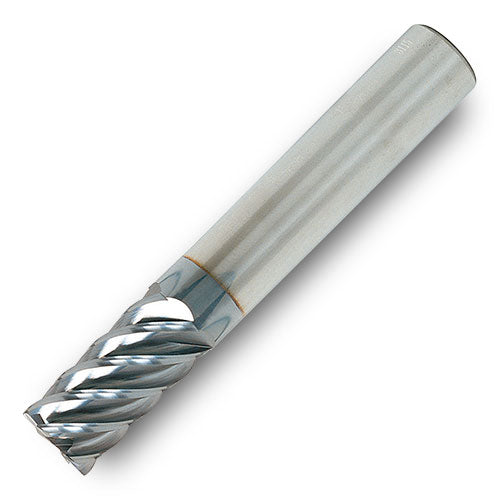

48J08036T0RD900 IN2003 IN2006
Item #: IC045650953
Brand: Ingersoll
Model #: 5650953
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.315″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 1.417″ |
| Application | || Side Slotting | Slitting | Slotting | | |
| Overall Length (OAL) | 3.543″ |
| Corner Radius (RE) | Sharp |
| Cutting Edge Material | Carbide |
| Corner Chamfer Width (CHW) | Sharp |
| Coating | AlTiN |
| Grade | IN2006 |
| Flute Count (NOF) | 6″ |
| Body Material | Steel |
| Flute Helix Angle (FHA) | 45 |
| Decimal Equivalent | 0.315″ |
| Shank Type | - |
| Measurement Type | Inch |
