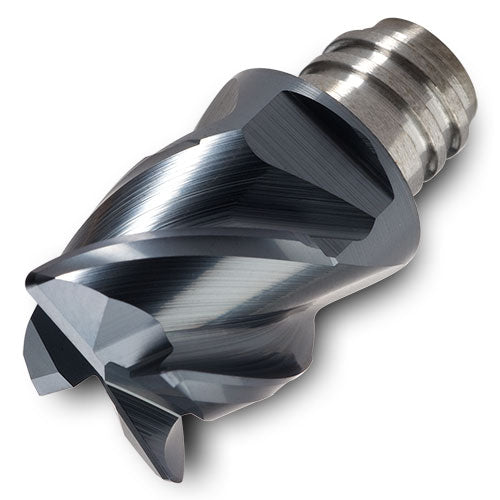

47D-3120TQRD01 IN2005
Item #: IC042928076
Brand: Ingersoll
Model #: 2928076
| Product Specifications | |
|---|---|
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 0.312″ |
| Grade | IN2005 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.3″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015 R |
| Functional Length (LF) | 0.39″ |
